X-Shift produces the strongest sequential gearbox for Mitsubishi Lancer EVO IV-IX and X in the world!

This long term project has been finished and tested, now is available for EVOs with torque up to 1400Nm.

This 5 speed sequential gearbox is offered with variety of final drive ratios suitable for many types of racing, for example drag race, time attack and others.

• 5 speed
• variety of final drive ratios
• torque rating 1200Nm, can be strengthened up to 1400Nm
• either sequential kit or complete, ready to install gearbox
• All parts including shifting mechanism parts and selector forks are made of the highest quality billet steel
• REM isotropic supersfinished all parts

Advantages

The Strongest Mitsubishi EVO Sequential Gearbox in the world with the fastest shifting

Our new Mitsubishi EVO STRONG sequential gearbox is a perfect solution for high torque producing cars running for example drag race, time attack or other circuit racing but also other disciplines. It has the strongest shafts, gears, hubs and dog rings whose geometry is upgraded a lot as well as the shifting mechanism. Because all parts are stronger, the gearbox must be 5 speed. Standard torque rating of this gearbox is 1200Nm. This value can be even increased thanks to the option we offer – to make custom input shaft for bigger and stronger clutch – this would increase the torque rating up to 1400Nm!

Our Mitsubishi EVO IV-IX gearbox contains internal oil pump, therefore it lubricates perfectly, which increases life span of the gearbox. It has also possibility to easily add additional cooler when inlet and outlet hoses are disassembled. Last but not least our gearbox has preparation for connection of hydraulic shifting hoses, if customer wants. We also have the fastest shifting on the market thanks to precious shifting system, so when you shift, the delay is the shortest compared to other gearboxes. Our kits contain middle and rear casings and gearbox mount bushing holder.

All shifting forks and shifting mechanism parts are made of billet steel and specially heat treated, which ensures their strength. All parts are REM superfinished.

Gear and final drive ratios

1. 2.33 / 3.00

2. 1.64 / 2.00

3. 1.25 / 1.47

4. 1.00 / 1.14

5. 0.83 / 0.89

Final drives 4.92 / 4.75 / 4.31 / 4.00 / 3.86

The fastest and strongest the full sequential gearbox Subaru on the market.

Rated to 1200 Nm engine torque.

Broken Speed Record 361,3 Kph.

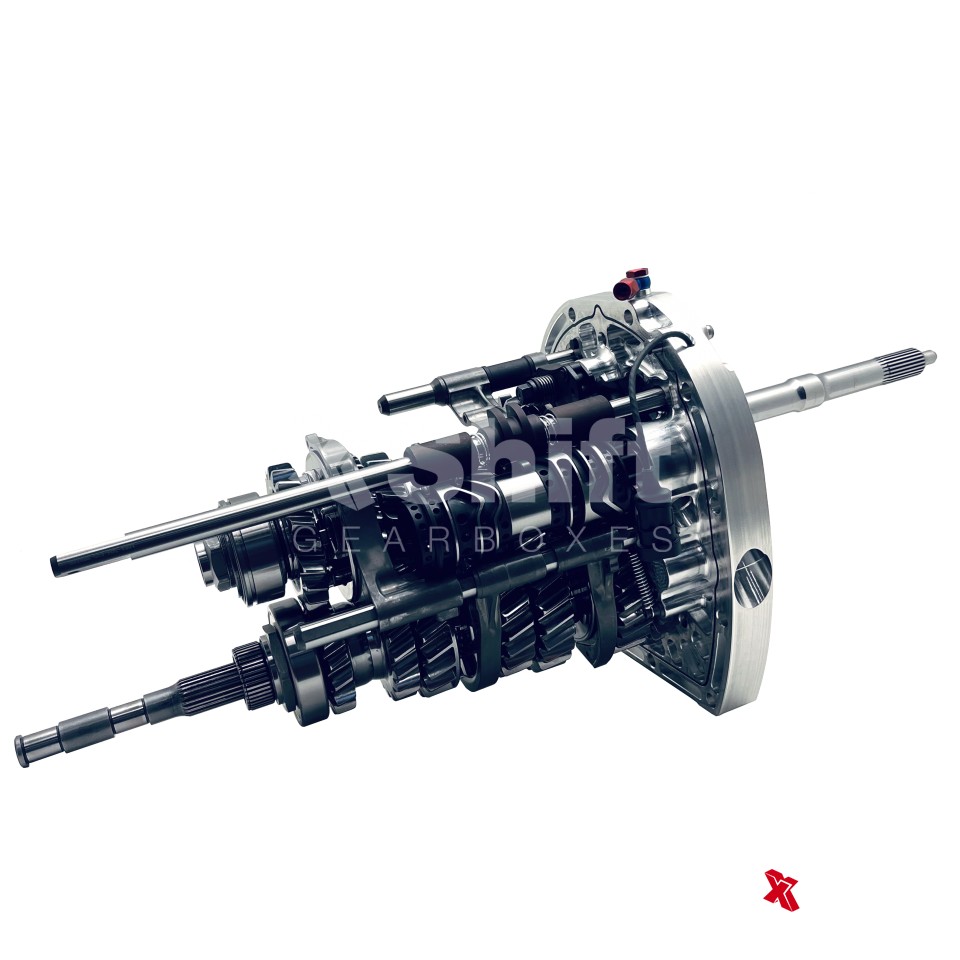

The full sequential gearbox kit Subaru + PLUS  has integrated an ultra lightweight aircraft grade aluminium CNC plate section that holds the  fastest sequential mechanism with the softest  shifting, the strongest shafts, forks and gears on the market.

Complete also with upgraded high performance gears and shafts, billet selector forks and billet selector rods made of the highest quality steel.

All parts are REM isotropic superfinished.

Using the standard Subaru STI 6 speed gearbox housing, the sequential kit is designed for the racer looking to have the fastest shifting sequential gearbox and keeping budget in mind. Kit is supplied in assembly position for easy installation into the gearbox.

Complete, ready to install gearboxes

We at X Shift offer installation of sequential gear kits into your original gearboxes. The service includes cleaning and inspection of all parts, differential adjustment, setting teeth clearance of final drive and installation of the sequential kit.

Last but not least we offer renovation of old gearboxes and possible replacement of OEM parts.

 Kit includes

• Complete the softest sequential mechanism on the market, fitted in the aluminium plate
• The strongest Input Shaft
• The strongest Output Shaft
• CNC Aluminium front plate case
• 1st - 6th Gears with the strongest dog rings
• Only one Selector rod for all selector forks
• The strongest Selector forks
• Shifting roller
• Gear indication sensor
• The newest Led Display Indicator
• Complete bearing and needle roller bearing set

TY-7 Gazoo Racing Sequential Gearbox 5, 6, 7 Speed with the most modern shifting mechanism and properties required for top race cars. This sequential is a complete gearbox and is direct replacement of Toyota GR Yaris original gearbox.

Specifications and advantages

• Latest shifting mechanism and dog engagement system
• 5/6/7 speed ratios
• Gearbox case made from ultra-lightweight aircraft grade aluminium CNC Billet - rated to 1400Nm engine torque
• Barrel rotation customization: R-N-1-7 or R-N-1-2-3-4-5-6-7-R-N-1-2..
• Option for cooling the transfer case
• Position for original oil temperature sensor
• Gear position sensor included
• Shifting with rod or cable in neat interior design
• Aluminium or carbon shifting lever
• Limited slip differential with externally adjustable preload
• Integrated oil pump better lubrication = increased lifespan
• Bell-housing in unique design included
